適用行業:
●印刷機●裝訂機●照相處理●插入機●真空吸盤●真空吸盤●機械臂●包裝機●真空成型●計算機應用●造紙機●貼標籤機●零件進料器●粉塵採樣●真空鑷子/吸塵器●空氣 軸承●制氧●醫療/保健設備●商用機械●其他自動化機械應用

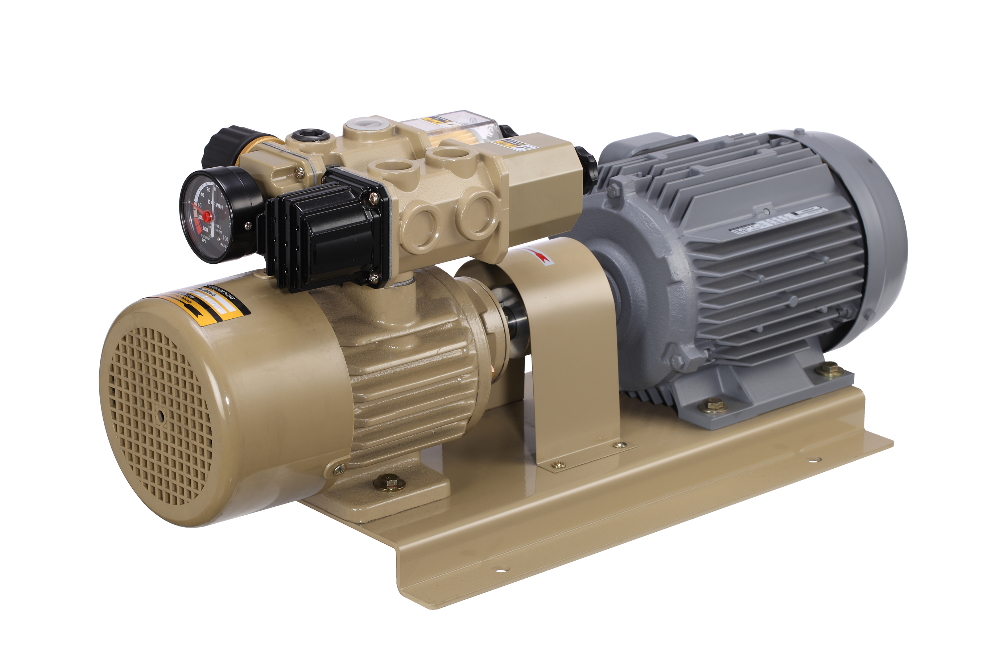

1.Dry running
rotary vane pump
capacities ranging from 235~685L/min
2.Max vacuum
660mmHg with intergal suction filter
3.Easy to
operate and mainatin motor and pump
4.Low cost
5.Running low
noise
|
MODEL |
DS-3E.A |
DS-5E.A |
DS-6E.A |
|
|
SUCTION CAPACITY |
50HZ |
235 |
405 |
575 |
|
60HZ |
280 |
480 |
685 |
|
|
ULTIMATE VACUUM(mmHg) |
650 |
660 |
||
|
OPERATE VACUUM(mmHg) |
450 |
|||
|
OPERATE PRESSURE(kg/cm2) |
0.5 |
|||
|
PORT DIAMETER |
3/4PT |
|||
|
WEIGHT(kg) |
21 |
27 |
36 |
|
|
POWER |
3Phase4P220/380V |
3Phase4P220/380V 0.70/0.75kw |
3Phase4P220/380V |
|
|
SIZE(LxWxH)(mm) |
480x222x265 |
550x270x265 |
650x270x283 |
|
